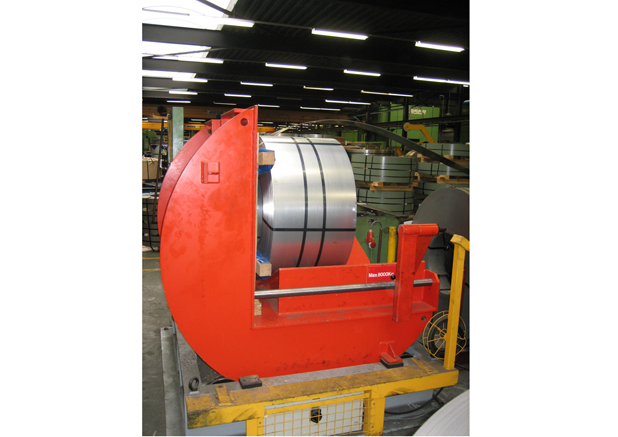

Coil upenders

For optimal and safe handling of coils and pallets up to 15.000 kg

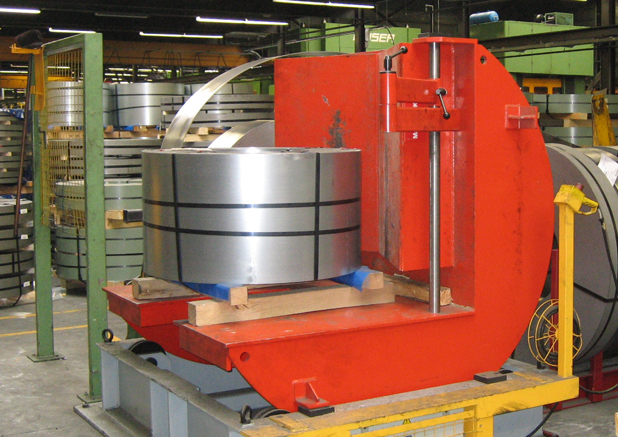

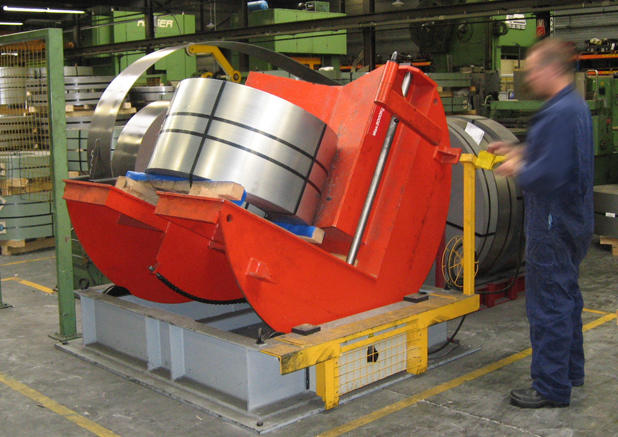

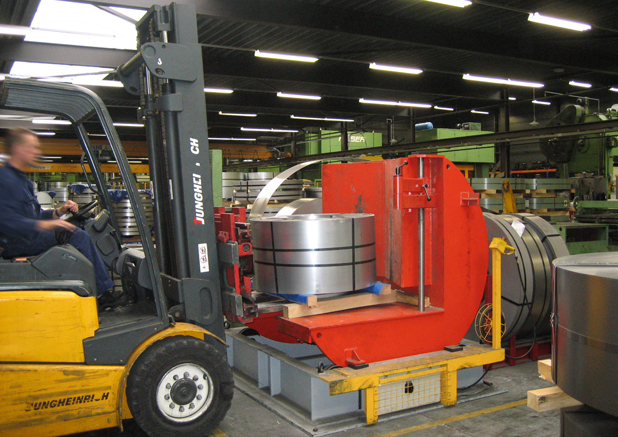

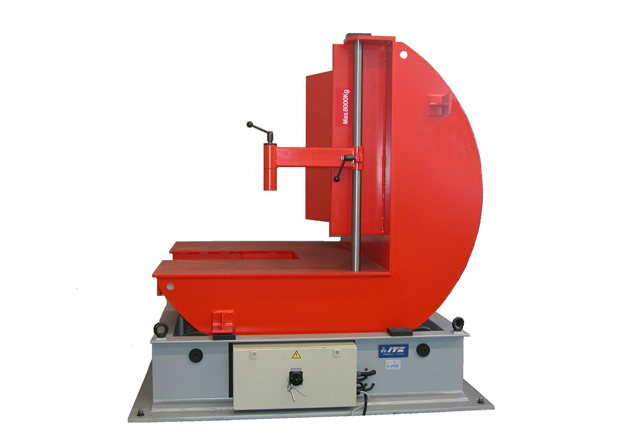

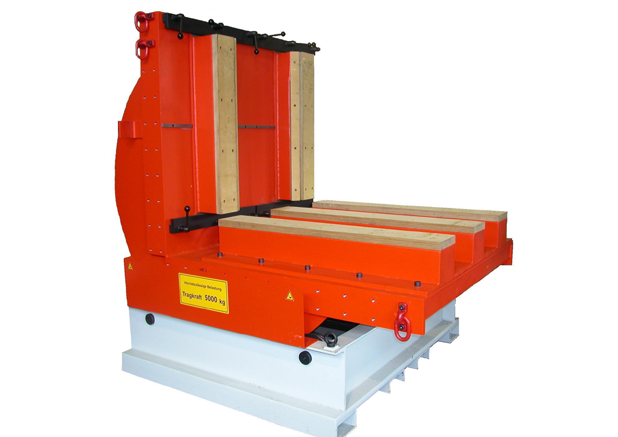

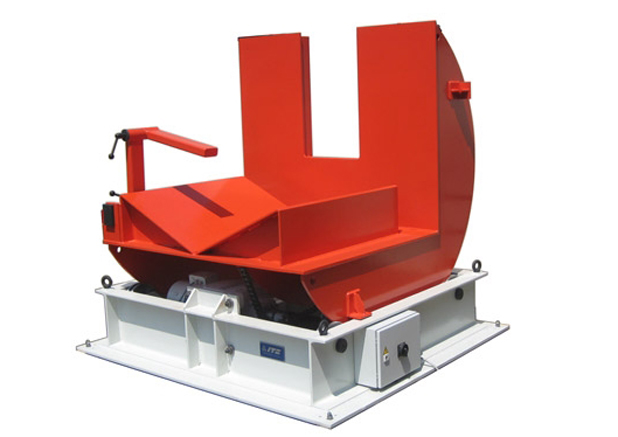

The upper part of the coil dump table has double bearings and is double geared. It is driven by a 3 phase motor. The table has a prism for coil centring and can be blocked on the side to prevent the coil from turning over. A double chain is mounted to prevent the system from turning by eventual chain breakage.

Optional the prism can be provided with synthetic plating to prevent the coils from damaging. The electronic control is mounted in a control panel with 3 meters of cable and remote control.

A lot of applications:
•     turning coils
•     turning pallets
•     turning plates
•     turning products

Optional:
•     prism with synthetic plating
•     light guards
•     180° motorised turning
•     varying models and dimensions on request

We can also deliver;

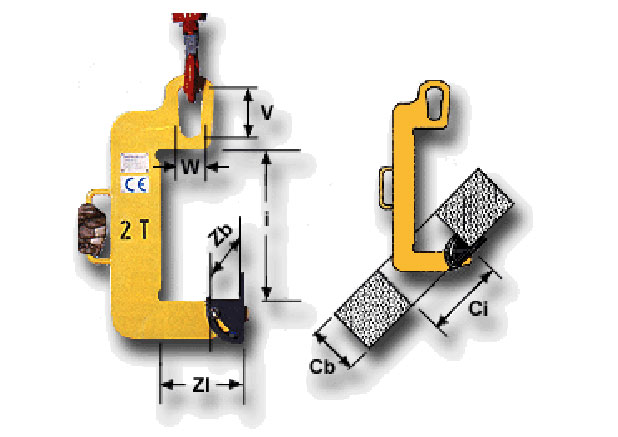

Coil hooks in different versions from 500 kg till 35.000 kg.

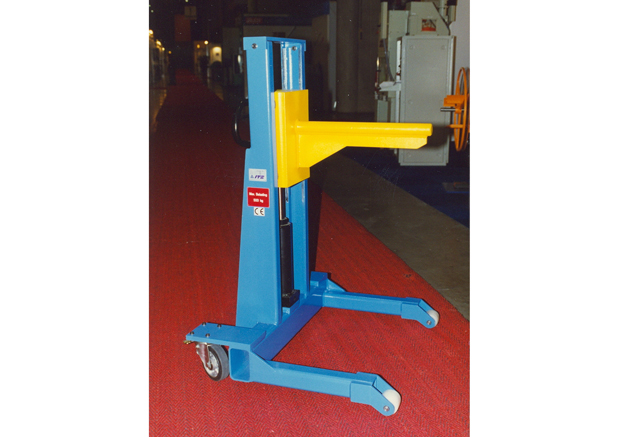

Coil cars till 1000 kg carrying capacity.
